GM Induction Heater
GM Induction Heater GM50 (Horizontal & Vertical Model)
GM Induction Heaters are designed to heat bearings and other shrink-fit components prior to mounting using the latest intelligent microcontroller based electronic controls. Induction heating allows the component to expand evenly, enabling safe and easy mounting without damaging the bearing or shaft.
Bearings and other torque transmitting steel components that are shrink-fitted on shafts may experience reduced service life due to rough handling or improper installation methods. By heating the component using induction heating technology, the component expands uniformly and can be mounted safely without applying mechanical force.
GM Induction Heaters are available in multiple models to suit different mounting requirements and are capable of heating bearings with bore sizes starting from 10 mm and above. These heaters provide fast, safe and economical heating solutions for industrial bearing installation applications.

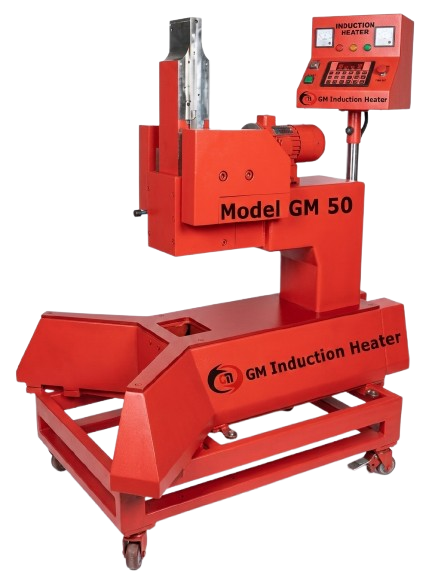

The GM50 Induction Heater is a heavy-duty model equipped with intelligent microcontroller based electronic control and high heating capacity. The machine weighs approximately 500 kg and is capable of heating bearings weighing up to 1000 kg to the desired temperature within a customized heating time.
Intelligent microcontroller based electronic control system
Heavy-duty induction heater with high heating capacity
Machine weight approximately 500 kg
Capable of heating bearings up to 1000 kg
Suitable for bearings with bore sizes from 10 mm and above
Manual or automated roll-sliding arrangement for standard yoke
Roll-sliding system prevents rubbing or damage to mating surfaces
Provides improved safety, ease of operation and higher productivity
| GM Induction Heater Range | ||
|---|---|---|
|
Induction Heater GM04 (2 to 4 KVA) |
Induction Heater GM10 (6 to 10 KVA) |
Induction Heater GM12 (12 to 16 KVA) |
|
Induction Heater GM25 (25 to 40 KVA) |
Induction Heater GM50 (50 to 80 KVA) |
Induction Heater GM100 (100 to 150 KVA) |
|
Induction Heater GMIR (25 to 150 KVA) |
Motorised Bearing Extractor GM BEM 30 |
Motorised CTRB Extractor GM CTRB100 |
| GM Hydraulic Product Range | ||
| Hydraulic Puller GMP - Series | Hydraulic Puller with Separate Hand Pump GMS - Series | Hydraulic Puller with Inbuilt Pump GMM - Series |
| Hydraulic Puller with Inbuilt Pump & Separator GMR - Series | Bearing Pullers GMBP - Series | Bearing Fitting Tool Kit |
| High Pressure Oil Injector GM IP - Series | Hydraulic Bearing Extractor GM BET - Series | Hydraulic Power Pack GM PC - Series |
| Hydraulic Stackers GM ST - Series | Hydraulic Pallet Truck GM PT - Series | AC / DC Stackers GM ST 902 / 903 - Series |
| Hydraulic Scissor Lift GM SS 910 / 909 Series | Drum Lifter cum Tilter GM DT - Series | Hydraulic Press GM PP - Series |
| Hydraulic High Pressure Valves GM HV - Series | ||
