GM Hydraulic Puller

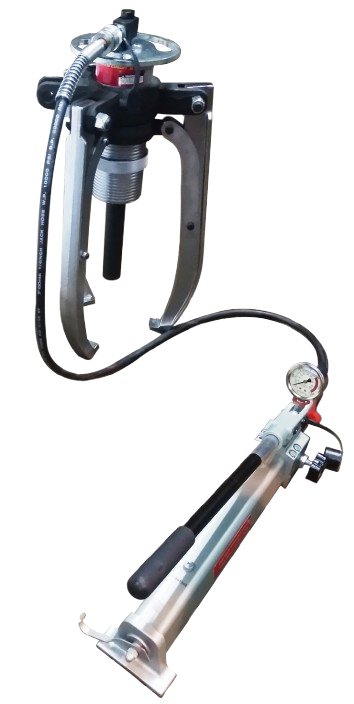

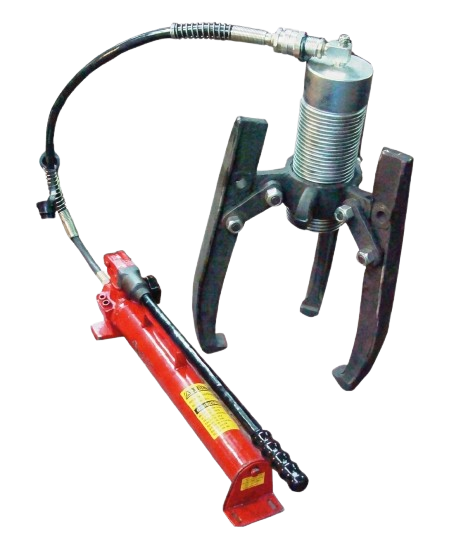

GM Hydraulic Puller (With Separate Hand Pump) – GMS Series
Features
- Self contained hydraulic pump and puller body with integral safety valve.
- 360° rotary socket.
- Four stages of foldable and removable handles to reduce handle force during operation.
- Easy release valve.
- Heat treated and chrome plated hydraulic cylinder rod provides linear force.
- 2/3 Combination puller cross head with manganese phosphate plating for rust proof durability.
- Spring loaded live centering nut (removable).
- Heat treated forged alloy steel cross bolts and jaws with manganese phosphate plating.
Technical Data Sheet
| Model | Capacity | Stroke (mm) | Reach (mm) | Spread (mm) | Weight (kg) |
|---|---|---|---|---|---|
| GMS 140 | 4 Ton | 60 | 185 | 255 | 4.5 |
| GMS 160 | 6 Ton | 60 | 185 | 255 | 4.5 |
| GMS 180 | 8 Ton | 85 | 229 | 350 | 6.5 |
| GMS 210 | 10 Ton | 85 | 229 | 350 | 6.5 |
| GMS 212 | 12 Ton | 85 | 269 | 375 | 8.0 |
| GMS 215 | 15 Ton | 85 | 269 | 375 | 8.0 |
| GMS 220 | 20 Ton | 111 | 360 | 520 | 22 |
| GMS 225 | 25 Ton | 111 | 360 | 520 | 22 |
| GMS 230 | 30 Ton | 111 | 360 | 550 | 32 |
