GM Hydraulic Puller

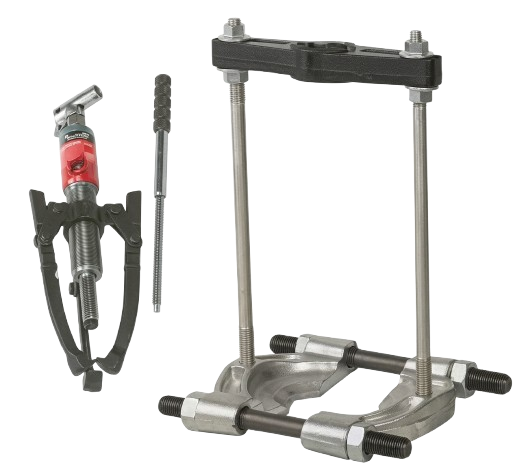

GM Hydraulic Puller (With Separator & Inbuilt Pump) – GMR Series
Features
- Self contained hydraulic pump and puller body with integral safety valve.
- 360° rotary socket.
- Four stages of foldable and removable handles to reduce handle force during operation.
- Easy release valve.
- Heat treated and chrome plated hydraulic cylinder rod provides linear force.
- 2/3 Combination puller cross head with manganese phosphate plating for rust proof durability.
- Spring loaded live centering nut (removable).
- Heat treated forged alloy steel cross bolts and jaws with manganese phosphate plating.
Technical Data Sheet
| Model | Capacity | Stroke (mm) | Reach (mm) | Spread (mm) | Weight (kg) |
|---|---|---|---|---|---|
| GMR 140 | 4 Ton | 60 | 185 / 250 | 255 / 110 | 4.5 / 8.5 |
| GMR 160 | 6 Ton | 60 | 185 / 250 | 255 / 110 | 4.5 / 8.5 |
| GMR 180 | 8 Ton | 85 | 229 / 270 | 350 / 220 | 6.5 / 12.5 |
| GMR 210 | 10 Ton | 85 | 229 / 270 | 350 / 220 | 6.5 / 12.5 |
| GMR 212 | 12 Ton | 85 | 269 / 381 | 375 / 290 | 8.0 / 18.0 |
| GMR 215 | 15 Ton | 85 | 269 / 381 | 375 / 290 | 8.0 / 18.0 |
