GM Induction Heater GM-04 (With or Without Boost Up Facility)
GM Induction Heaters are designed to heat bearings and other shrink-fit components prior to mounting using the latest intelligent microcontroller based electronic controls. Proper induction heating expands the component for easy mounting and prevents damage caused by hammering or improper installation methods.
Bearings and torque transmitting steel components often get damaged due to rough handling or faulty mounting techniques. Using induction heating ensures safe expansion of the component and significantly improves the life of bearings and rotating equipment.

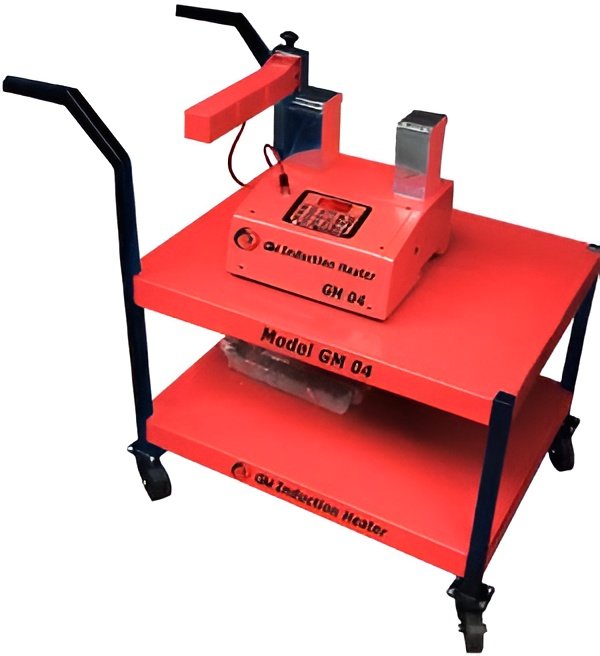

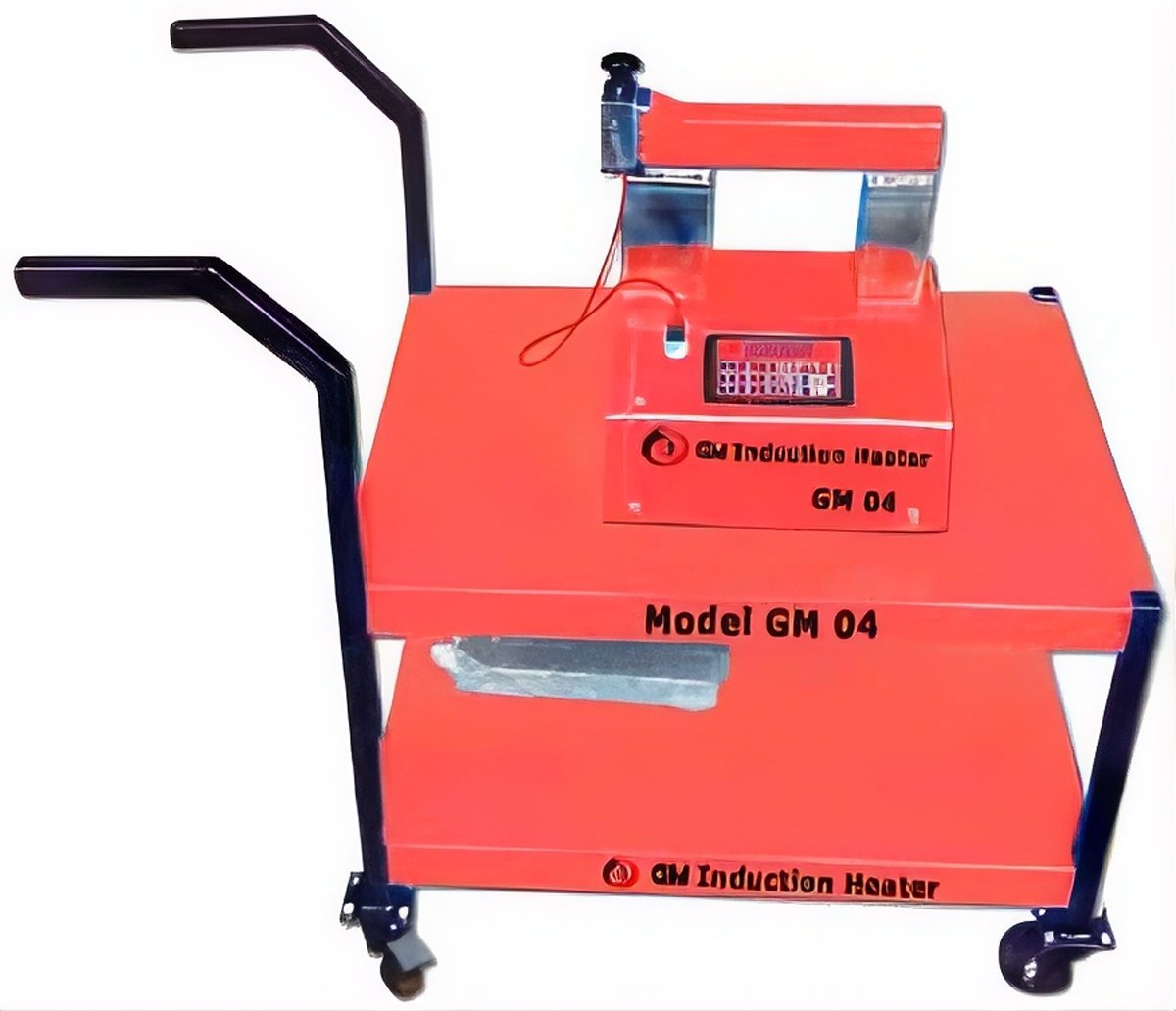

The GM-04 model is lightweight and portable with a power capacity ranging from 2 to 4.0 KVA. It is equipped with intelligent programmable electronic controls and offers both temperature and time based operating modes through a feather-touch keypad.
Microcontroller based intelligent programmable controls
Two operating modes – Temperature Mode and Time Mode
Feather touch keypad with digital display
Suitable for bearings with bore size from 10 mm and above
Lightweight and portable design for easy handling
Can heat larger diameter bearings using raiser blocks
Capable of heating magnetic plates by replacing the horizontal yoke
Technical Data Sheet
| Product Data | GM 04 |
|---|---|
| 1) Power | 2.0 to 4.0 KVA |
| 2) Voltage | 230V or 110V ±10%, 50-60Hz |
| 3) Current (Max) | 10 / 18A |
| 4) Power Control | 25% 50% 75% & 100% |
| 5) Temperature Control (Range) | 0-250°C |
| Maximum Temperature | 400°C |
| Accuracy Temperature | ± 3°C |
| 6) Time-Control | 0-99 Minutes |
| 7) Residual Magnetism | <1A / cm |
| 8) Overall Dimensions (W×D×H) | 300 × 270 × 330 mm |
| 9) Space Between Supports | 140 × 130 mm |
| 10) Weight (Main Unit) | 27 Kg |
| 11) Weight with Standard Yokes | 32 Kg |
| 12) Horizontal Yoke Sizes |
20 × 20 × 250 for bore dia. 25 MM & above 30 × 30 × 250 for bore dia. 40 MM & above 55 × 55 × 250 for bore dia. 75 MM & above |
| 13) Colour of Equipment | Red / Blue / Apple Green |
| Optional Accessories | |
| Horizontal Yoke Sizes |
10 × 10 × 250 for bore dia. 12 MM & above 15 × 15 × 250 for bore dia. 20 MM & above 40 × 40 × 250 for bore dia. 55 MM & above 45 × 45 × 250 for bore dia. 61 MM & above |
| Digital Thermometer | 0-500°C |
| Roll-Sliding Model | Available |
| Swing Arm Model | Available |
| Riser Block (Pair) | Available |
| Magnetic Temperature Probe | Available |
| Equipment Trolley | Available |
| Hydraulic Equipment Trolley | Available |
