GM Hydraulic Puller

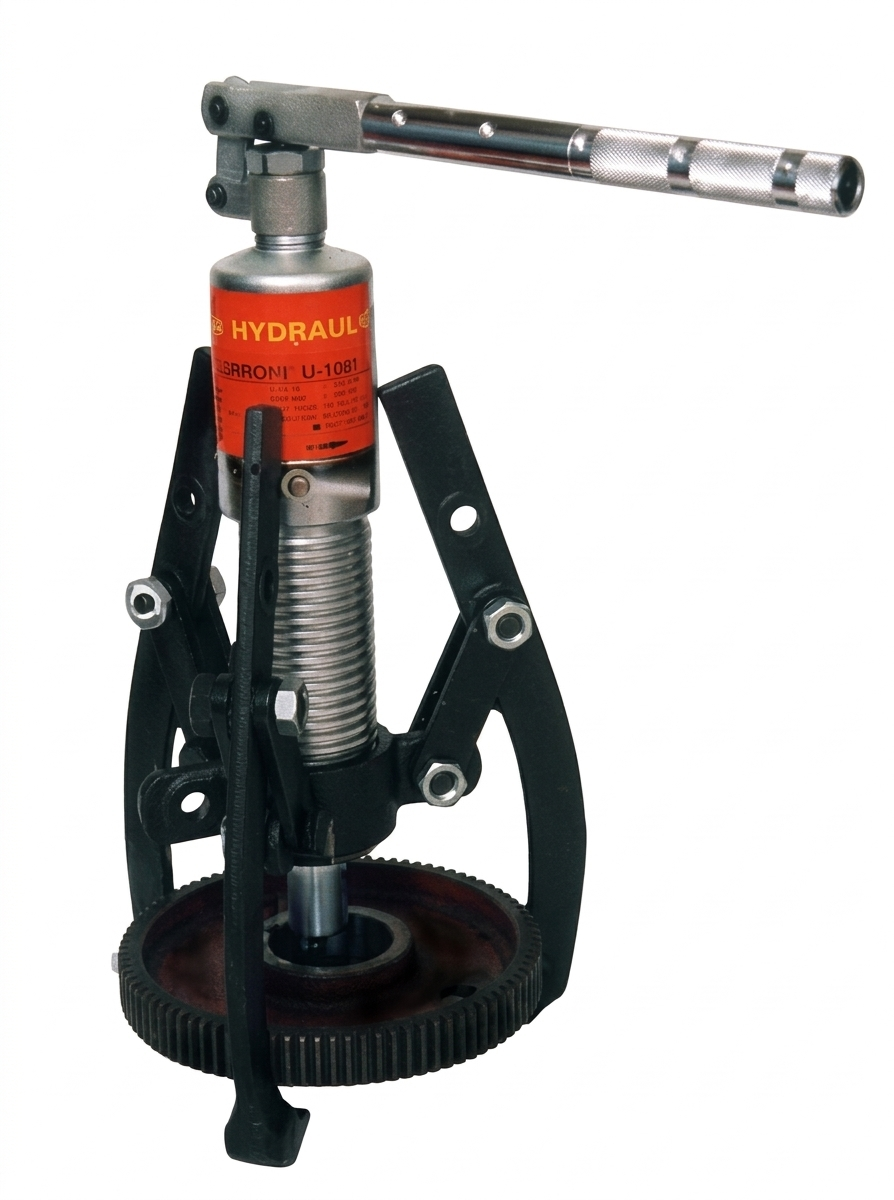

GM Hydraulic Puller – GMP Series
GM Hydraulic Puller GMP Series is designed for safe and efficient removal of bearings, gears, pulleys and other press-fitted components. The puller is equipped with a self-contained hydraulic system that provides powerful, controlled pulling force while minimizing manual effort.
The robust construction and advanced hydraulic mechanism ensure reliable performance, durability and ease of operation in industrial maintenance applications.
Self-contained hydraulic pump and puller body with integral safety valve
360° rotary socket for flexible positioning
Four-stage foldable and removable handle to reduce operating effort
Easy release valve for smooth pressure control
Heat-treated and chrome plated hydraulic cylinder rod for smooth linear force
2 / 3 combination puller cross head with manganese phosphate coating for rust resistance
Spring-loaded removable live centering nut
Heat-treated forged alloy steel cross bolts and jaws with manganese phosphate plating
Enquire Now| GM Hydraulic Puller – GMP Series Technical Data Sheet | |||||
|---|---|---|---|---|---|
| Model | Capacity | Stroke (mm) | Reach (mm) | Spread (mm) | Weight (kg) |
| GMP 140 | 4 Ton | 60 | 185 | 255 | 4.5 |
| GMP 160 | 6 Ton | 60 | 185 | 255 | 4.5 |
| GMP 180 | 8 Ton | 85 | 229 | 350 | 6.5 |
| GMP 210 | 10 Ton | 85 | 229 | 350 | 6.5 |
| GMP 212 | 12 Ton | 85 | 269 | 375 | 8.0 |
| GMP 215 | 15 Ton | 85 | 269 | 375 | 8.0 |
| GMP 220 | 20 Ton | 111 | 360 | 520 | 22 |
| GMP 225 | 25 Ton | 111 | 360 | 520 | 22 |
| GMP 230 | 30 Ton | 111 | 360 | 550 | 32 |
