GM Induction Heater

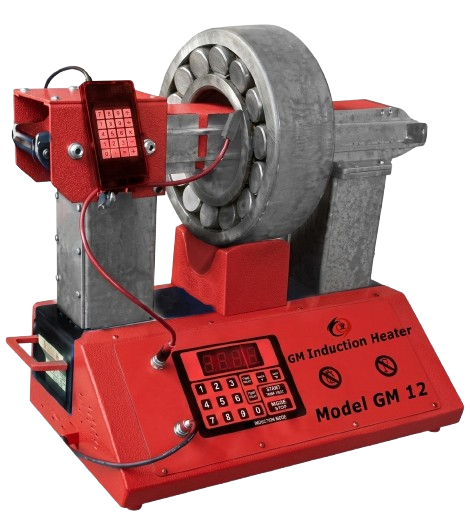

GM Induction Heater GM12
(Horizontal & Vertical with or without Boost up Facility)
GM Induction Heaters are designed to heat bearings and other shrink-fit components prior to mounting using the latest intelligent microcontroller based electronic control system. Controlled induction heating expands the component, allowing easy mounting and preventing damage caused by hammering or improper installation methods.
Bearings and torque transmitting steel components that are shrink-fitted on shafts may get damaged due to rough handling or faulty installation. This problem can be avoided by expanding the components using induction heating before mounting, ensuring safe installation and longer service life.
GM Induction Heaters are available in different models for mounting bearings with bore sizes from 10 mm and above. These heaters provide fast, safe and economical heating of bearings for industrial maintenance operations.
Key Features
Intelligent microcontroller based electronic control system
Suitable for bearings with bore size from 10 mm and above
Fast, safe and economical heating of bearings
Can heat a bearing weighing up to 60 kg to 110°C within 7 minutes

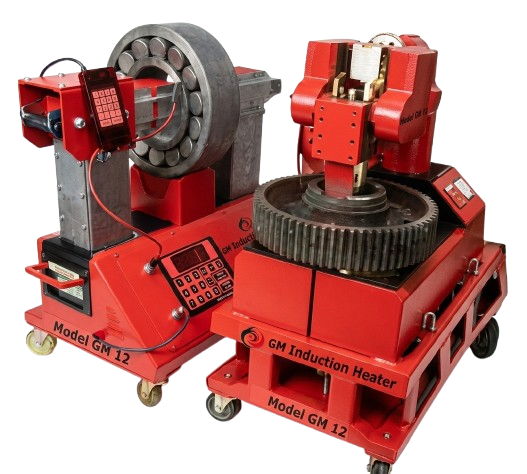

Horizontal & Vertical model available with optional boost up facility
Manual or automated roll-sliding arrangement for standard yoke 80 × 80 × 500 mm
Yoke lifts or rolls off automatically without damaging mating surfaces
Provides additional safety, easy operation and improved productivity
TECHNICAL DATA SHEET
| Product Data | GM 12 |
|---|---|
| 1) Power | 12 / 16 KVA |
| 2) Voltage | 2 / 3 Ø X 415V ± 10% |
| 3) Current (Max) | 32 / 40A |
| 4) Power Control | 25% 50% 75% & 100% |
| 5) Temperature Control (Range) | 0 – 250°C |
| Maximum Temperature | 400°C |
| Accuracy Temperature | ± 3°C |
| 6) Time-Control | 0 – 99 Minutes |
| 7) Residual Magnetism | < 1A / cm |
| 8) Overall Dimensions (W×D×H) | 590 × 330 × 480 mm |
| 9) Space Between Supports (W×H) | 320 × 205 mm |
| 10) Weight (Main Unit) | 90 Kg |
| 11) Weight with Standard Yokes | 115 Kg |
| 12) Horizontal Yoke Sizes | 80 × 80 × 500 for bore dia. 112 MM & above |
| 13) Colour of Equipment | Red / Blue / Apple Green |
| Optional Accessories | |
| Horizontal Yoke Sizes |
30 × 30 × 500 for bore dia. 40 MM & above 40 × 40 × 500 for bore dia. 55 MM & above 50 × 50 × 500 for bore dia. 68 MM & above 65 × 65 × 500 for bore dia. 90 MM & above |
| Digital Thermometer | 0 – 500°C |
| Roll-Sliding Model | Available |
| Swing Arm Model | Available |
| Riser Block (Pair) | Optional |
| Magnetic Temperature Probe | Available |
| Equipment Trolley | Available |
| Hydraulic Equipment Trolley | Available |
| Hydraulic Stacker | For loading & unloading of components |
