GM Induction Heater GM10 (with or without Boost up Facility)
GM Induction Heaters are designed to heat bearings and other shrink-fit components prior to mounting using the latest intelligent microcontroller based electronic control systems. Proper induction heating expands the component and enables smooth mounting without damaging the bearing or shaft.
Bearings and torque transmitting steel components can get damaged due to rough handling and incorrect installation methods. By heating the component through induction heating, it expands uniformly and can be mounted safely, improving the life of the bearing and machinery.

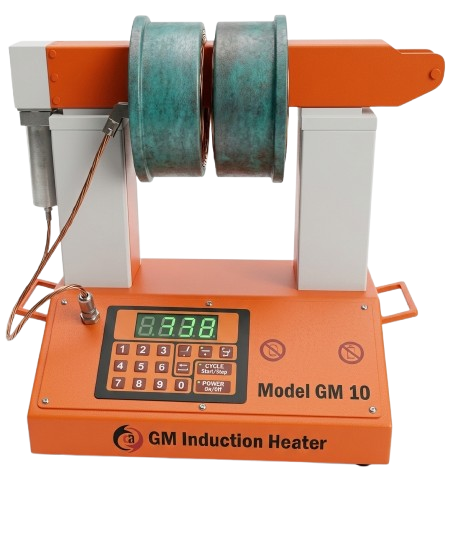

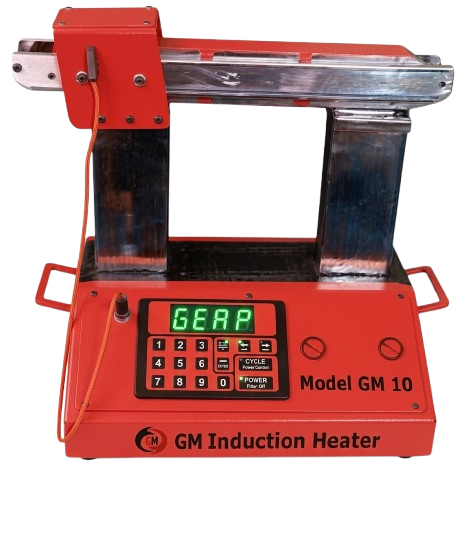

The GM10 Induction Heater is a medium-capacity heating unit equipped with intelligent microcontroller based electronic controls. It is compact and portable, making it easy to carry to the site of operation using specially designed handles provided on both sides.
This model is capable of heating a bearing weighing 50 kg to 60 kg up to a temperature of 110°C within approximately 7 minutes, ensuring fast and efficient mounting operations.
Intelligent microcontroller based electronic control system
Medium capacity heater suitable for industrial applications
Portable design with specially designed handles on both sides
Capable of heating 50–60 kg bearings up to 110°C within 7 minutes
Remote control provided for higher operational efficiency
Safe, fast and economical heating process
Enquire NowTechnical Data Sheet
| GM Induction Heater GM10 – Technical Data Sheet | |
|---|---|
| Power | 6.0 / 10 KVA |
| Voltage | 2Ø X 415V ± 10% |
| Current (Max) | 18 / 25 A |
| Power Control | 25%, 50%, 75% & 100% |
| Temperature Control Range | 0 – 250°C |
| Maximum Temperature | 400°C |
| Temperature Accuracy | ± 3°C |
| Time Control | 0 – 99 Minutes |
| Residual Magnetism | < 1 A / cm |
| Overall Dimensions (W × D × H) | 430 × 300 × 470 mm |
| Space Between Supports (W × H) | 210 × 215 mm |
| Weight (Main Unit) | 60 Kg |
| Weight with Standard Yokes | 70 Kg |
| Horizontal Yoke Size | 70 × 70 × 350 mm (for bore dia. 95 mm & above) |
| Colour of Equipment | Red / Blue / Apple Green |
| Optional Accessories | |
| Horizontal Yoke Sizes |
14 × 14 × 350 mm (Bore dia. 19 mm & above) 20 × 20 × 350 mm (Bore dia. 25 mm & above) 40 × 40 × 350 mm (Bore dia. 55 mm & above) 50 × 50 × 350 mm (Bore dia. 68 mm & above) |
| Digital Thermometer | 0 – 500 °C |
| Roll-Sliding Model | Available |
| Swing Arm Model | Available |
| Riser Block (Pair) | Available |
| Magnetic Temperature Probe | Available |
| Equipment Trolley | Available |
| Hydraulic Equipment Trolley | Available |
